SKATE — Precision You Can Trust

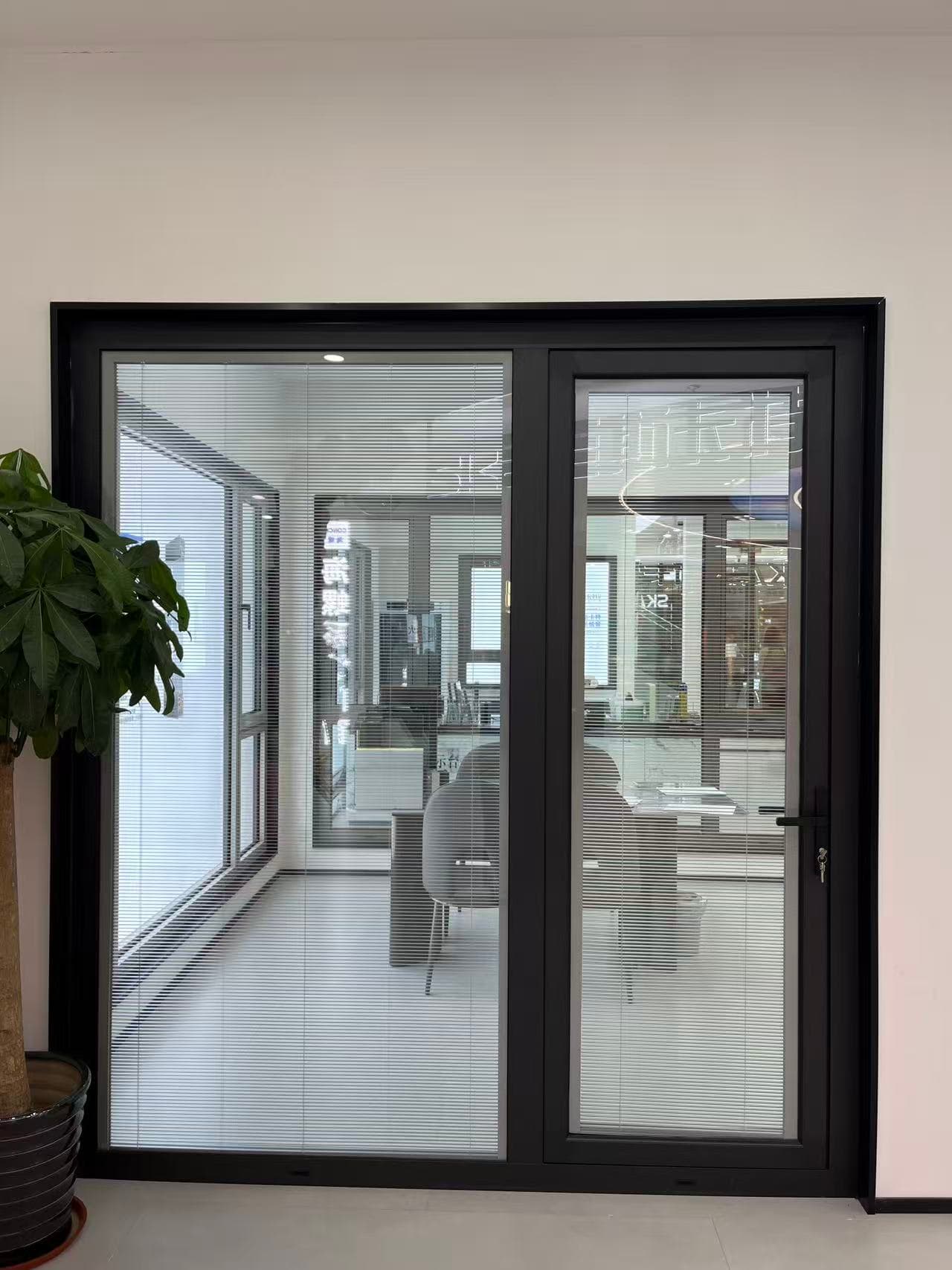

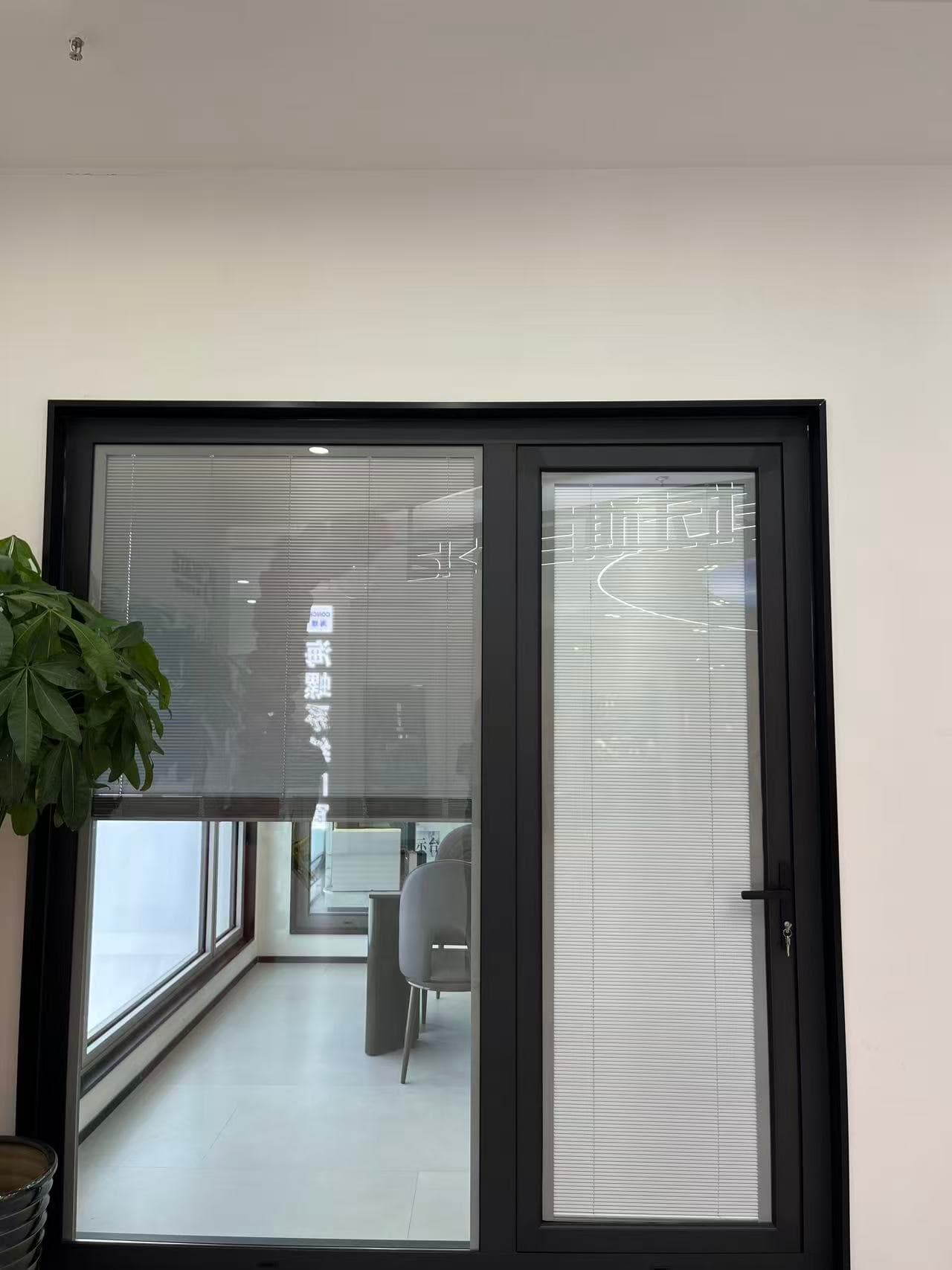

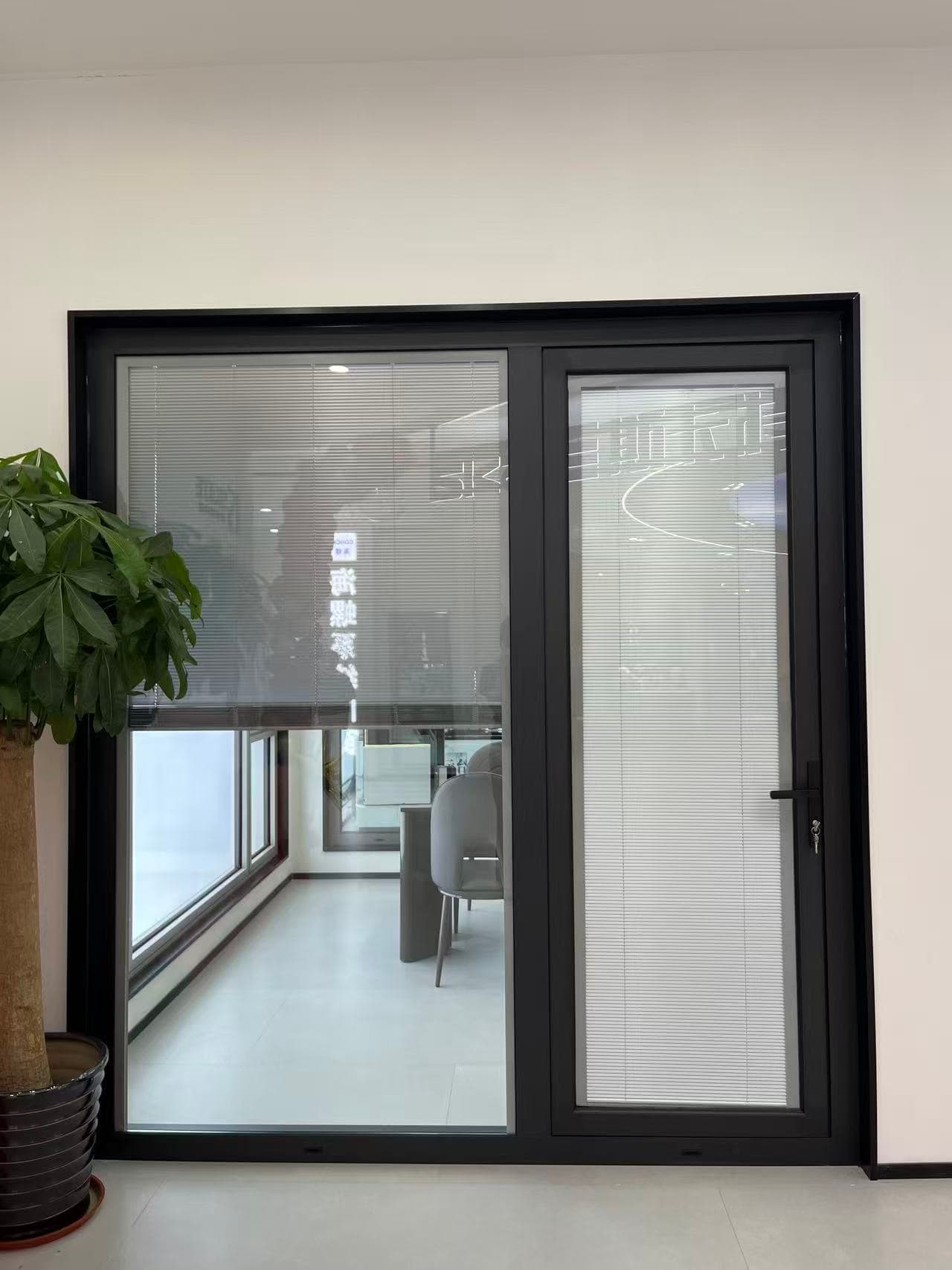

SKATE aluminum casement door — main view

Door Series

Aluminium Casement Door

Aluminum casement doors from SKATE are precision-fabricated to specification, combining heavy-duty thermal break profiles with CNC manufacturing and seamless corner welding.

Wind load ≥ 3000 PaWater tightness E900 PaSound insulation Rw 38–44 dB
Request a Quote

Technical Specifications

Profile Material
6063-T5 Aluminium Alloy
Profile Wall Thickness
1.8 mm / 2.0 mm
Profile Width
76 mm – 117 mm (with screen option)
Thermal Break
PA66 GF25, 24 mm – 35 mm
Glass Options
Tempered DGU / TGU / Low-E
Glazing Thickness
24 mm up to 42 mm
Air Leakage
≤ 0.1 cfm/ft² | Class 4 (EN 12207)
Water Tightness
E900 Pa (EN 12208)
Wind Load
≥ 3000 Pa | Class C5 (EN 12210)
Sound Insulation (Rw)
38 – 44 dB
Certifications
CE, NFRC, AS 2047

Fitted with HOPPE / GIESSE / Winkhaus hardware — see our component partners

Options & Customization

Specify glass, color, screens and hardware for your project — all factory-direct from SKATE.

Clear Glass

Standard float glass, economical and versatile.

VLT ~89%

Ultra-Clear (Low-Iron) Glass

Minimal green tint, maximum clarity and color fidelity.

VLT ~91.5%

Low-E Glass

Microscopic metallic coating reflects heat, keeps interiors comfortable.

U-value ↓ ~30%

Ultra-Clear Low-E

Low-iron base + Low-E coating: clarity with insulation.

Best visual + thermal

Double-Silver Low-E

Two silver coating layers: blocks solar heat, admits light.

SHGC ↓ significantly

Ultra-Clear Double-Silver Low-E

Premium: low-iron clarity + double-silver performance.

Flagship glazing

Frosted Glass

Acid-etched translucency for privacy with soft light.

Bathrooms, partitions

Switchable Smart Glass (PDLC)

Electrically switches between clear and opaque instantly.

Privacy on demand

Tell us your glass, color and hardware preferences in the quote form — we'll spec it for you.

Request a Quote →

Product Overview

Aluminium Casement Door – Premium Hinged Entrance System

The SKATE aluminium casement door is a premium hinged entrance system built with heavy-duty thermal break profiles and multi-point locking hardware. Engineered for superior weather sealing and structural integrity, it matches seamlessly with SKATE's casement window system — allowing architects to specify a fully unified facade where doors and windows share identical sightlines, finishes, and performance ratings.

Available as single or double leaf, inward or outward opening, with optional integrated screen systems (profile width up to 117 mm). The PA66 GF25 polyamide thermal break of 24–35 mm interrupts thermal bridging, keeping interior frame surfaces warm and condensation-free even in cold climates.

Hardware & Security: Multi-point locking as standard with hardware from certified European brands (HOPPE, GIESSE). Hinge options include standard, heavy-duty, and concealed.

Surface Finishes: All RAL powder coat colours, PVDF, anodised, and wood grain transfer printing. Dual-colour interior/exterior finishes available.

Ideal Applications: Premium residential entrances, balcony and terrace access, and indoor-outdoor transitions in Europe, North America, and Australia.

Related Products

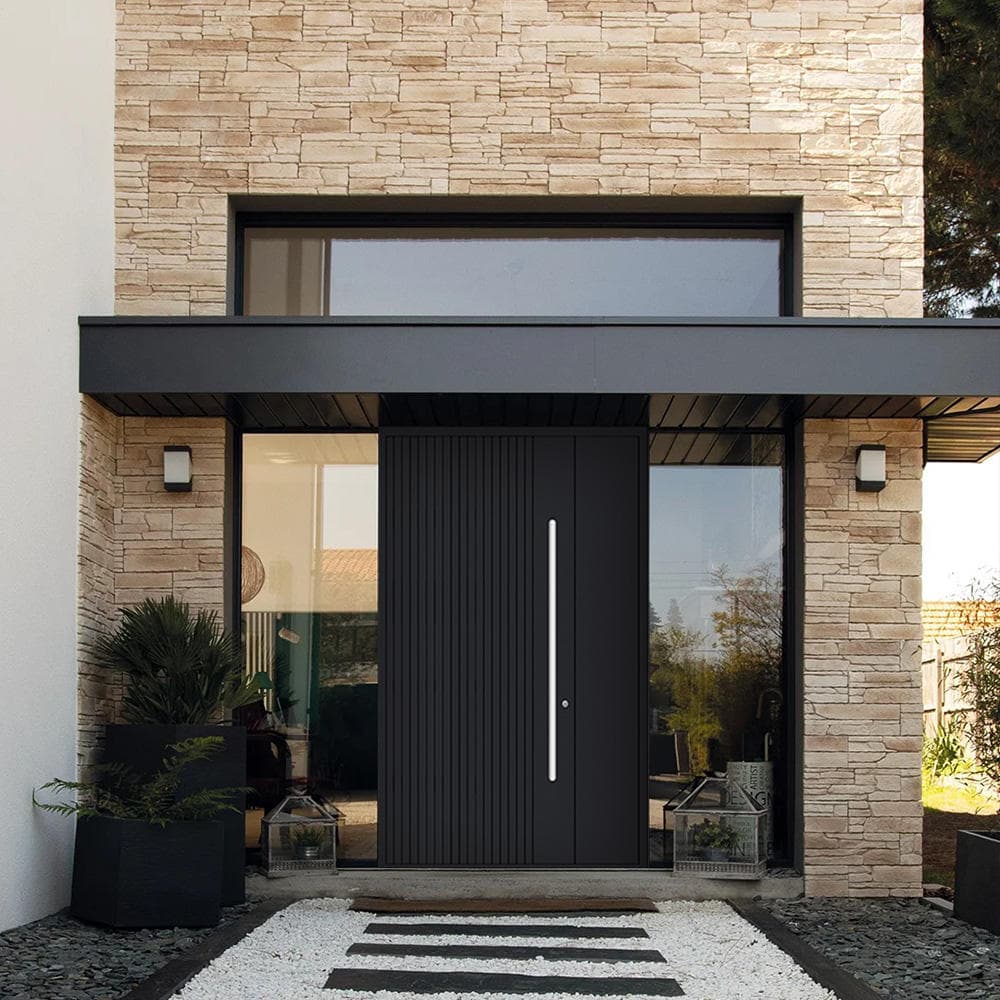

SKATE aluminum entry door
